Automated Two-Plate ELISA/CLIA Analyzer

The Automated Two-Plate ELISA/CLIA Analyzer is characterized by high quality, durability, ease of operation, guaranteed quality, and accurate results. Additionally, it has low purchase costs and high cost-effectiveness. Huatai Hehe (Beijing) Trading Co., Ltd., headquartered in Fengtai Science City, Beijing, China, looks forward to your purchase!

Share With:

01Product Description

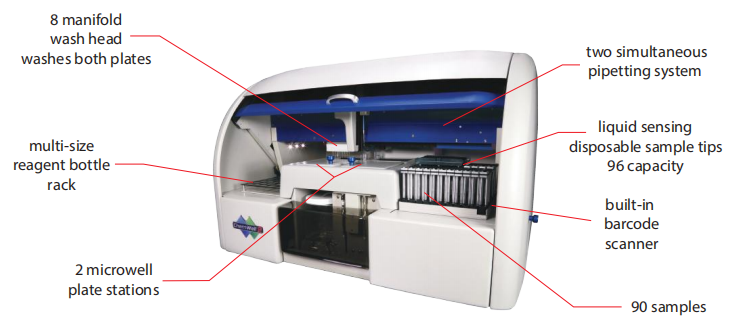

ChemWell 2 Automated ELISA/Chemiluminescent analyzer offers a true two-plate solution for processing microwell ELISA and CLIA assays in a robust walk away system.

• Separate reagent and sample pipetting improves throughput

• Individual strips are timed separately allowing a wider variety of protocols to run simultaneously

• ChemWell 2 management software keeps track of assay timing requirements and automatically regulates assay start times to avoid conflicts. Mix and match ELISA or CLIA tests by strip row or by plate

• Microwell plates are run independently, each can be set at 37˚C or ambient temperature

• ChemWell 2’s programmable wash uses an 8-well wash head allowing for an entire strip to be washed at once with consistent timing

• Built in barcode reader tracks sample placement

• Optional liquid sensing disposable probe tips are available for sample

Fluid handling:	Pipetting range 5 μL – 1.95 mL Typical reaction volume range of 200 μL to 250 μL
Probe:	Liquid sensing probe tips monitor remaining volumes, crash protection
ELISA reader:	Accuracy of ±1% + 0.01 A or better up to 1.5 A and ±2% or better above 1.5 A
ELISA Optical filter range:	4 standard filters 405, 450, 492, 630 nm, optional additional filters available
CLIA reader:	Glow Luminescence
Sensitivity/Detection limit:	HRP 1x10-18 moles, ALP 1x10-21 moles
Detector:	Photomultiplier (PMT)
Spectral Response Range:	300-650 nm
Peak Wavelength:	400 nm

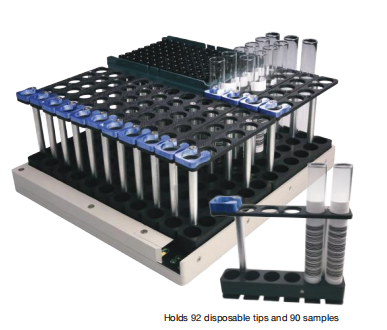

Standard sample rack:	90 sample capacity - serum vials or 13x100 mm tubes
Standard reagent rack:	Typically 29 - Assorted replaceable racks and custom designed racks are available for various bottle sizes
Barcode scanner:	Integrated barcode scanning with positive patient ID system
Light source:	Tungsten-Xenon lamp
Dimensions:	Height - 57.7 cm Width - 107 cm Depth - 62.4 cm Weight - 60 kg

02Product Advantage

• ChemWell 2’s combination of hardware and software is designed to optimize ELISA/CLIA testing on one or two microwell plates.

• Follow prompts to program test kits, many flexible options. Once you have created your worklist, loaded the samples and reagents, ChemWell 2 will do the rest.

• ChemWell 2 comes with a host of reporting options, providing your laboratory with critical data in an organized printout or electronic document, reports are customizable

• Ideal for programming an assortment of microwell ELISA and CLIA kits including infectious diseases, hormones, tumor markers, auto immunity and toxins.

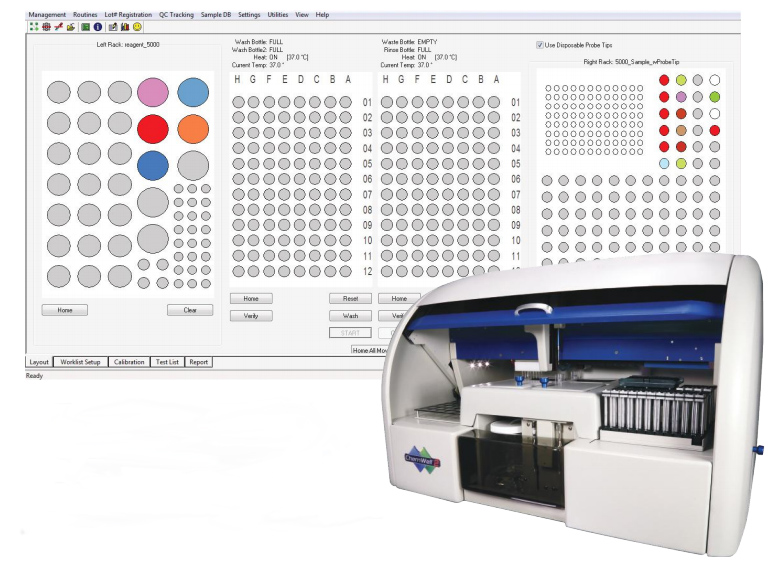

ChemWell 2’s intuitive software design helps keep users informed of on-board processes by providing a visual representation of the entire workflow in an easy to understand graphical interface. ChemWell 2’s software options provide users the ultimate in Flexibility
